KBGDM glass door merchandiser fridge and freezer are ETL certified.
This unit adopts fan cooling design, with a temperature range of 30~+40°F for fridge and -10~0°F for freezer. Charged with R290 refrigerant, it is fitted with an inverter Embraco compressor and SAIWEI EC fan motors, controlled by a Dixell digital thermostat. It features inner vertical LED lights, 5 price-tag equipped shelves per door, frameless double glazed Low-E glass door for fridge, frameless triple glazed anti-fog glass door for freezer and SUS304 interior base. Customizable color is available to meet diverse project demands.
Temperature Class: 3M0 (-1 / +1 C°), 3M1 (-1 / +5 C°) , 3M2 (-1 / +7 C°), 3L1 (-16 / -22 C°)
Description
Glass Door Merchandiser Fridge Freezer, Plug-in
Lenght (mm):
680(1D) / 1360(2D) / 2040(3D)
Depth (mm):
830
Height (mm):
2100
Sepcifications
Key Features
Advanced compressors paired with an optimized cooling circuit deliver lower power consumption. With our environmentally friendly design, stable optimal performance is maintained while operational costs are effectively reduced.
✓ Integral foaming body, eliminating condensation at the joint of foamed panels
✓ EC evaporator fan motors
✓ EC condenser fan motors
✓ Over-sized evaporator for higher evaporation temperature
Energy Efficient System
Digital thermostat with microprocessor control ensures precise temperature maintenance. Perfect for preserving fresh food quality and extending shelf life in commercial environments.
✓ Dixell temperature controller
✓ Capillary system
✓ Embraco Inverter compressor with R290
Precision Temperature Control
Constructed with galvanized steel and stainless steel and high-density polyurethane foam insulation. Built to withstand demanding commercial environments while maintaining hygiene standards.

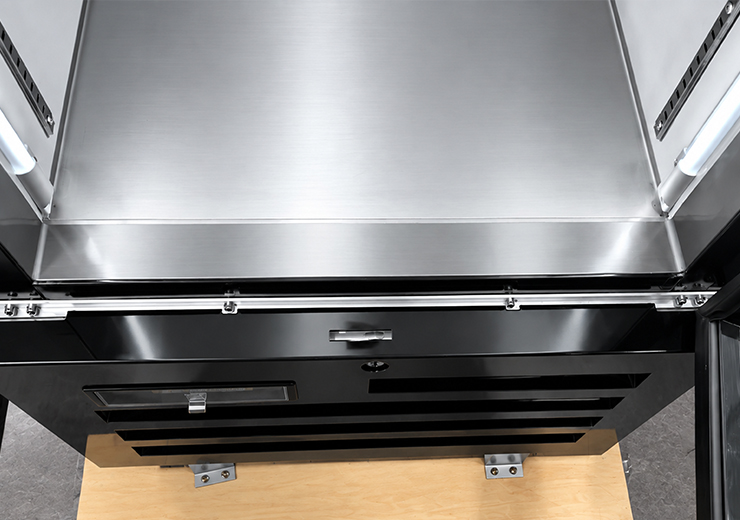

✓ Stainless steel inner base
✓ 160kg/m2 for up shelves, 220kg/m2 for bottom shelves
✓ 60mm thick insulation for both fridge and freezer
✓ Available with wire shelf & powder coated steel plain shelf
Solid Body Construction
Constructed with premium materials and dependable core parts, the equipment delivers steady operation, great heat insulation and extended service life to meet demanding commercial refrigeration requirements.

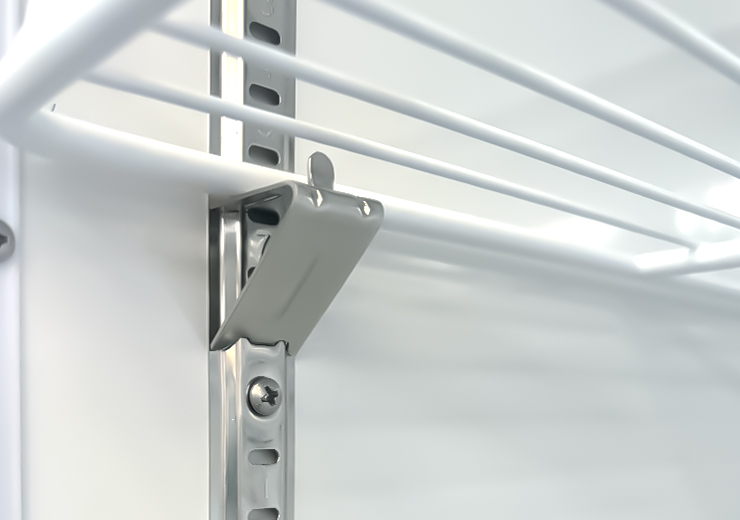

✓ Comes standard with 5 upper adjustable shelving with price tag
✓ Inner vertical LED lights
✓ Frameless double glazed Low-E glass door for chiller
✓ Frameless triple glazed anti-fog glass door for chiller
✓ Self-evaporation drip tray supplied as standard
High-End Configuration
