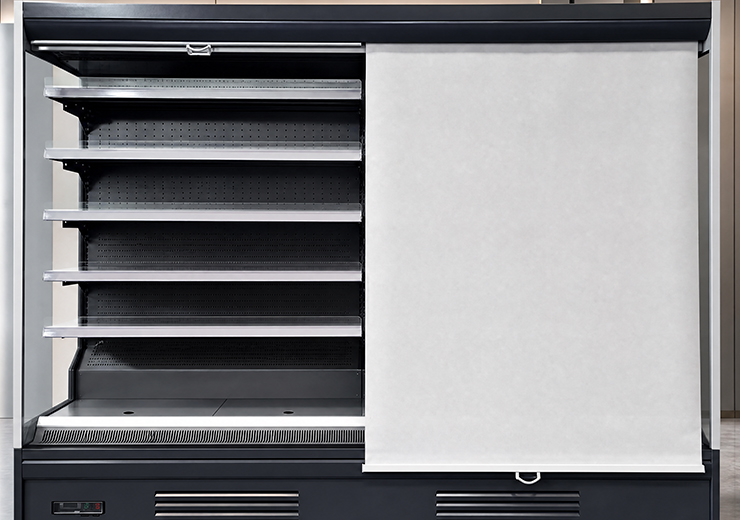

The ELF Multi‑Deck Open Cooler delivers a versatile, energy‑efficient retail solution for a broad selection of chilled merchandise, including dairy, cheese, fresh fruits, vegetables, ready‑to‑eat sandwiches and beverages.
Boasting an ultra‑low front rail, it creates an expanded display area for greater product exposure. Five adjustable shelf levels come as standard, each fitted with integrated under‑shelf LED lighting to brighten goods and enhance visual appeal.
Temperature Class: 3M1 (-1 / +5 C°) , 3M2 (-1 / +7 C°)
Description
Multideck Open Chiller, Plug-in
Lenght (mm):
938 / 1250 / 1500 / 1875 / 2500
Depth (mm):
640 / 740 / 840
Height (mm):
2000
Endpanel (mm): 40 mm (Mirror/Solid), 30 mm (Panoramic)
Sepcifications
Key Features
Advanced compressor technology and optimized cooling system reduce energy consumption. Our eco-friendly design helps lower operating costs while maintaining optimal performance.
✓ Integral foaming body, eliminating condensation at the joint of foamed panels
✓ EC evaporator fan motors
✓ EC condenser fan motors
✓ Over-sized evaporator for higher evaporation temperature
✓ Ultra low front rail design
Energy Efficient System
Digital thermostat with microprocessor control ensures precise temperature maintenance. Perfect for preserving fresh food quality and extending shelf life in commercial environments.
✓ Dixell temperature controller
✓ Capillary system
✓ Secop compressor with R290
Precision Temperature Control
Constructed with galvanized steel and stainless steel and high-density polyurethane foam insulation. Built to withstand demanding commercial environments while maintaining hygiene standards.
✓ Stainless steel inner base, fan motor and evaporator cover sheet
✓ 160kg/m2 for up shelves, 220kg/m2 for bottom shelves
✓ 0.8mm thick shelf with strong strengthen beams & 2.2mm thick brackets
Solid Body Construction
Built with premium‑grade materials and reliable core components, this unit delivers stable performance, excellent thermal insulation and long‑term durability for heavy‑duty commercial refrigeration applications.
✓ Comes standard with base shelf and 5 upper adjustable shelving
✓ Price tag & plexiglass front riser fitted for each shelf
✓ LED lights beneath each shelf & top canopy
✓ Self-evaporation drip tray supplied as standard
✓ Stainless steel pipe bumper supplied as standard
High-End Configuration
