Upgrade your supermarket refrigeration with the GAEAECO Multideck Glass‑Door Chiller. This cutting‑edge chiller series delivers outstanding performance, long‑term durability and superior energy efficiency, featuring an expanded Total Display Area (TDA), lower Total Energy Consumption (TEC) and an optimised Energy Efficiency Index (EEI).

The GAEAECO range is the ideal solution for modern supermarkets aiming to elevate merchandise presentation while cutting operational energy expenses.

Temperature Class: 3M0 (-1 / +1 C°) , 3M1 (-1 / +5 C°) , 3M2 (-1 / +7 C°)

Description

Multideck Glass Door Chiller, Remote/Waterloop

Brochure

Lenght (mm):

938 / 1250 / 1875 / 2500 / 2900 / 3750

Depth (mm):

740 / 840 / 990

Height (mm):

2050 / 2200

Endpanel (mm): 40 mm (Mirror/Solid), 30 mm (Panoramic)

​​​​​​​

​​​​​​​

Sepcifications

Key Features

Advanced compressor technology and optimized cooling system reduce energy consumption. Our eco-friendly design helps lower operating costs while maintaining optimal performance.



✓ Integral foaming body, eliminating condensation at the joint of foamed panels

✓ EC evaporator fan motors

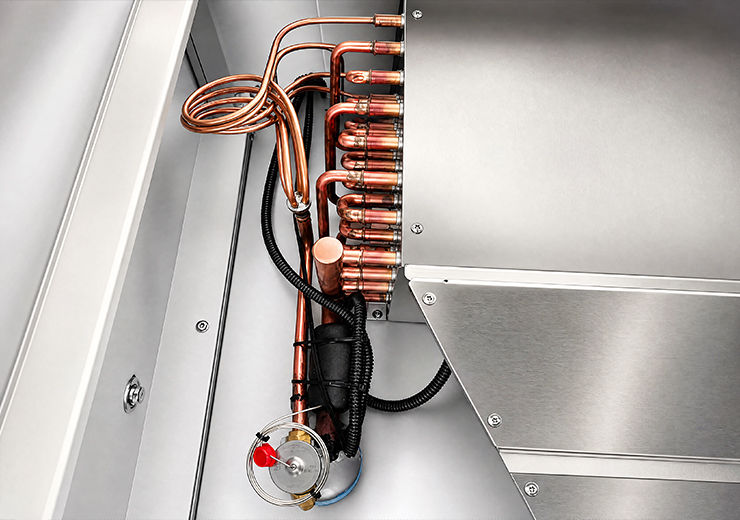

✓ Over-sized evaporator, higher evaporation temperature

Energy Efficient System

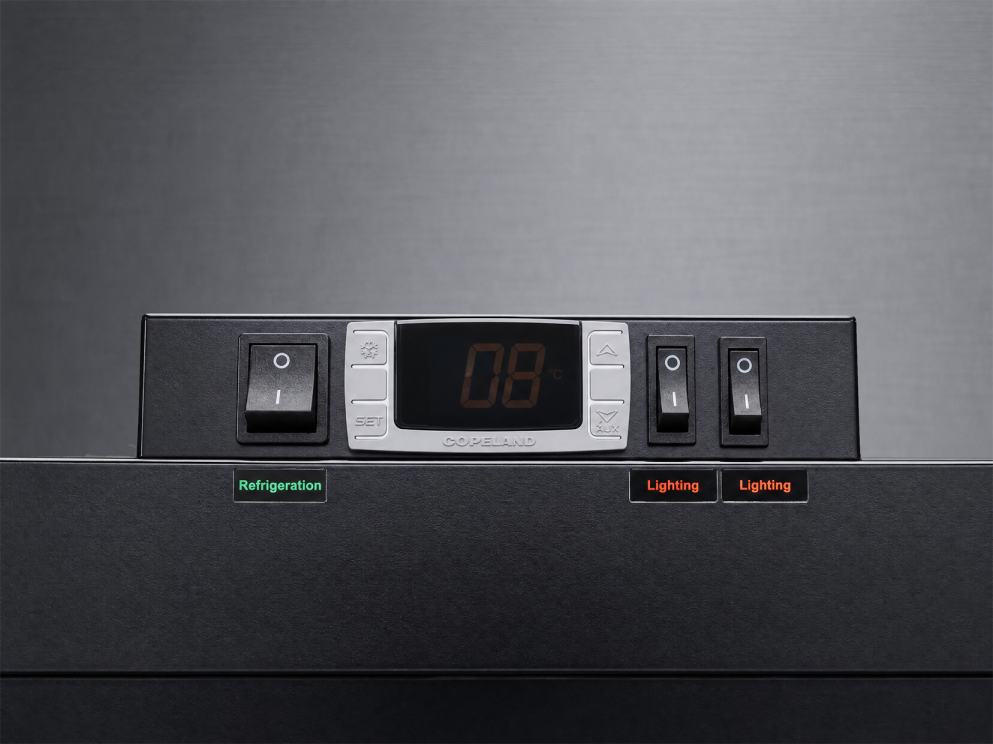

Digital thermostat with microprocessor control ensures precise temperature maintenance. Perfect for preserving fresh food quality and extending shelf life in commercial environments.



✓ Dixell temperature controller

✓ Danfoss thermal expansion valve (R404a, R448a, R449a)

✓ Electronic expansion valve available

Precision Temperature Control

Constructed with galvanized steel and stainless steel and high-density polyurethane foam insulation. Built to withstand demanding commercial environments while maintaining hygiene standards.



✓ Stainless steel inner base, fan motor and evaporator cover sheet

✓ 160kg/m2 for up shelves, 220kg/m2 for bottom shelves

✓ 0.8mm thick shelf with strong strengthen beams & 2.2mm thick brackets

Solid Body Construction

Built with premium‑grade materials and reliable core components, this unit delivers stable performance, excellent thermal insulation and long‑term durability for heavy‑duty commercial refrigeration applications.

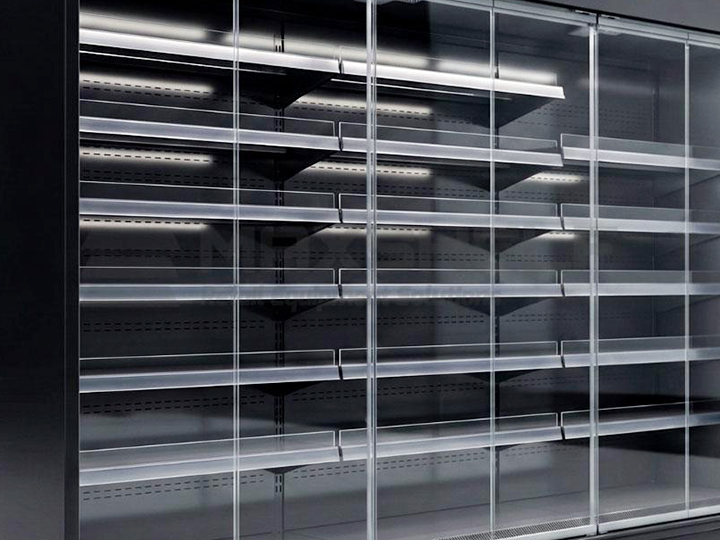

✓ Comes standard with base shelf and 5 upper adjustable shelving

✓ Price tag & plexiglass front riser fitted for each shelf

✓ LED lights beneath each shelf & top canopy

✓ Full‑view double‑glazed anti‑fog glass doors, optimising merchandise display visibility

High-End Configuration
